Marcy Tip Tape
Foam Tapes Print

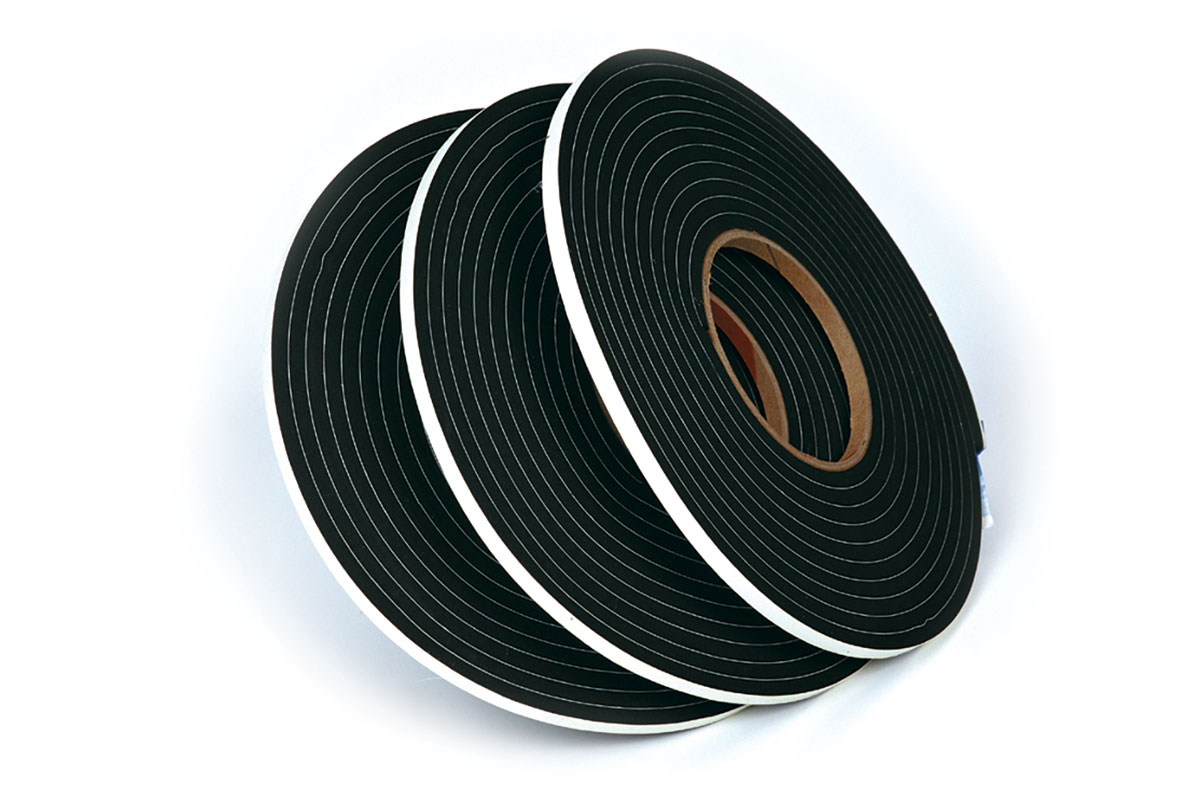

Foam Tapes


OE-quality foam tapes with a size for every vehicle. Prevents glass from sinking (for use with all types of urethane), reduces road noise, prevents leakers, and provides professional finish.
  • High grade foams retain most of their height and prevent glass from sinking.
  • Flexible for rounding of corners
  • Wide selection of sizes

DOUBLE-SIDED (DST)
Adhesive on both sides provides up to 50 PSI for quicker drive-away time. Also, compensates for urethanes with slower cure rates.

SINGLE-SIDED (ONE-WAY)
Adhesive on one side (car body side) allows for adjustments after windshield has been placed.

HANDY-REELS
Self-dispensing mobile-packaging that keeps single-sided foam clean and handy.

MEGA-REELS
Large reels of continuous length single-sided foam provides most economical way to use foam.

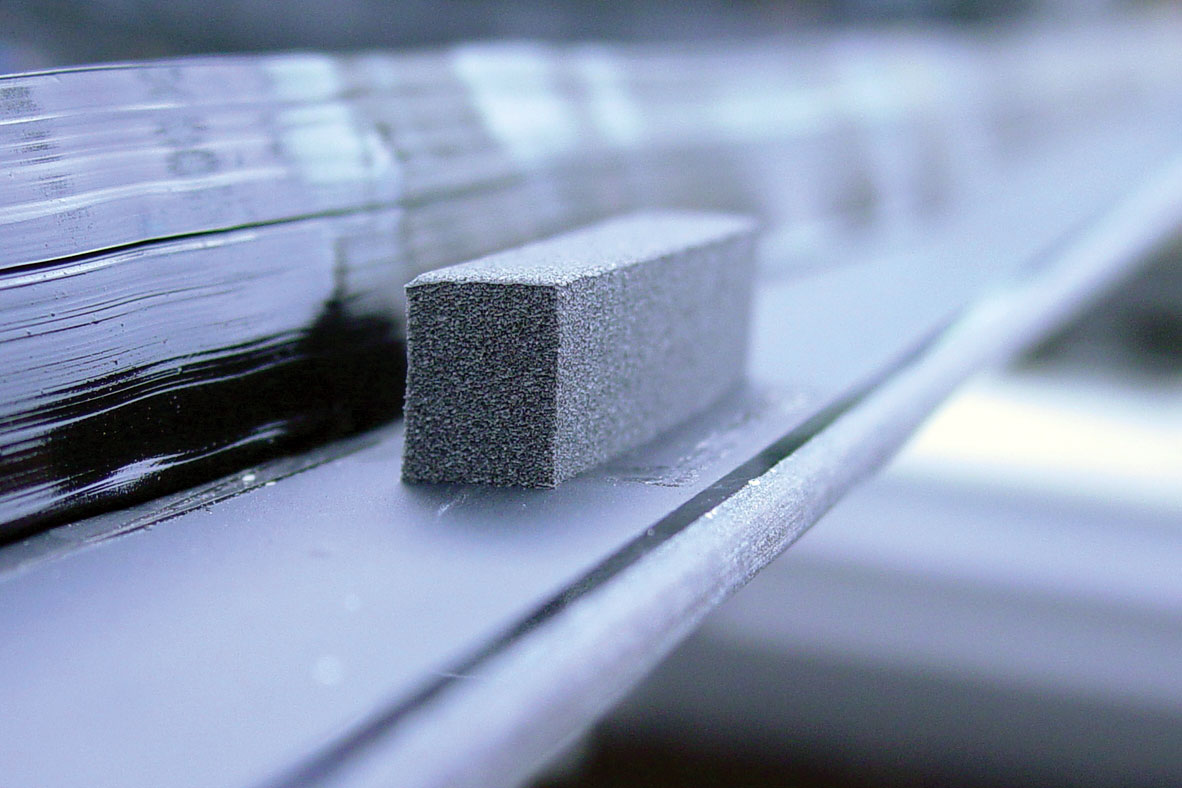

HEIGHT-SETTING BLOCKS

Even when using high-viscosity urethanes the glass may still sink too low into the urethane. One inch pre-cut blocks placed along the pinchweld will eliminate this problem.

WINDSHIELD STOP BLOCKS
Hard neoprene blocks used along cowl area to prevent vertical slippage of glass while urethane cures: one size (3/8" x 1/2" x 1")


Foam Tapes

Part No. Description Unit Packaging

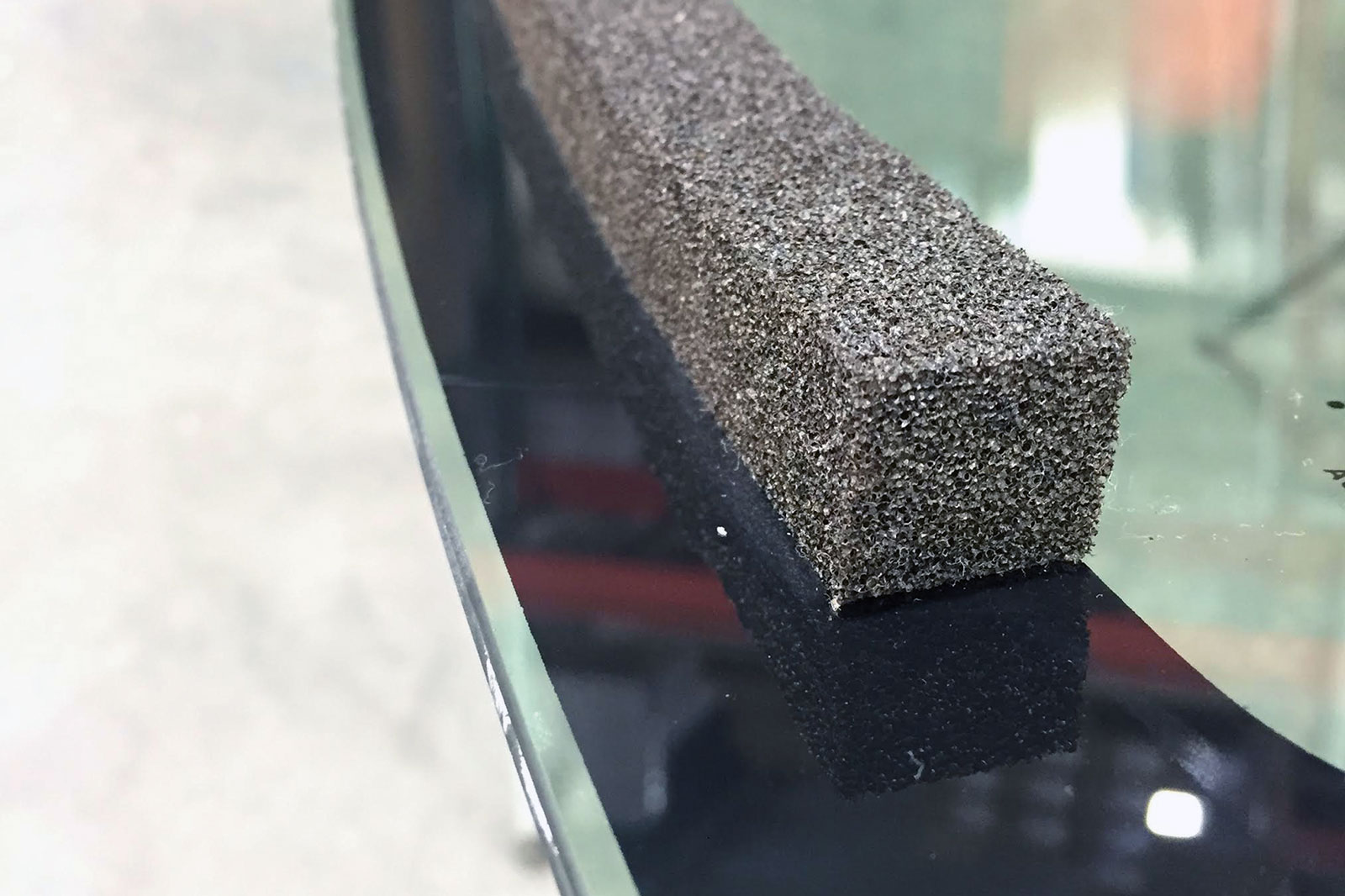

Expanding Foam
ME202002 20mm" x 20mm" x 2m
64 rolls / case
Double-Sided (DST); high-density
ME5492 1/8" x 3/16" x 15'
12 rolls / case
ME5493 3/16" x 3/16" x 15'
12 rolls / case
ME5494 1/4" x 1/4" x 15'
12 rolls / case
ME5495 5/16" x 1/4" x 15'
12 rolls / case
ME5496 3/8" x 1/4" x 15'
12 rolls / case



Single-Sided (One-Way); high-density
ME6492 1/8" x 3/16" x 18'
12 rolls / case
ME6493 3/16" x 3/16" x 18'
12 rolls / case
ME6494 1/4" x 1/4" x 18'
12 rolls / case
ME6495 5/16" x 1/4" x 18'
12 rolls / case
ME6496 3/8" x 1/4" x 18'
12 rolls / case



Single-Sided; medium-density
ME9523 (special-order only) 3.2mm x 4.5mm x 4.5m (1/8” x 3/16” x 15’)
16 rolls / case
ME9524 4.5mm x 4.5mm x 5.5m (3/16” x 3/16” x 18’)
12 rolls / case
ME9525 6.4mm x 6.4mm x 4.5m (1/4” x 1/4” x 15’)
12 rolls / case
ME9532 4.5mm x 6.4mm x 4.5m (3/16” x 1/4” x 15’)
12 rolls / case
ME9533 (special-order only) 4.5mm x 7.9mm x 4.5m (3/16” x 5/16” x 15’)
12 rolls / case
ME9534 (special-order only) 6.4mm x 7.9mm x 4.5m (1/4” x 5/16” x 15’)
12 rolls / case
ME9535 (special-order only) 6.4mm x 8.7mm x 4.5m (1/4” x 11/32” x 15’)
10 rolls / case
ME9538 (special-order only) 9.5mm x 7.9mm x 4.5m (3/8” x 5/16” x 15’)
12 rolls / case



Handy-Reels (self-dispensing reels, single-sided foam)
ME6484 1/4" x 1/4" x 200'
1 reel / case
ME6485 (special-order only)
5/16" x 1/4" x 175'
1 reel / case



Mega-Reels (master reels, single-sided foam, hi-grade neoprene)
ME6490 (special-order only) 1/8" x 3/16" x 800'
1 reel / case
ME6491 3/16" x 3/16" x 600'
1 reel / case
ME6497 1/4" x 1/4" x 800'
1 reel / case
ME6498 (special-order only) 5/16" x 1/4" x 700'
1 reel / case
ME6499 (special-order only) 3/8" x 1/4" x 600'
1 reel / case



Height Setting Blocks (single-sided foam)
ME7493 3/16" x 3/16"x 1" --- 96 blocks/pad
64 pads / case
ME7494 1/4" x 1/4" x 1" --- 72 blocks/pad
64 pads / case
ME7495 5/16" x 1/4" x 1" --- 72 blocks/pad
56 pads / case
ME7496 3/8" x 1/4" x 1" --- 72 blocks/pad
48 pads / case



Stop Blocks (Hard Neoprene)
3812 3/8" x 1/2" x 1"
100 blocks / box
